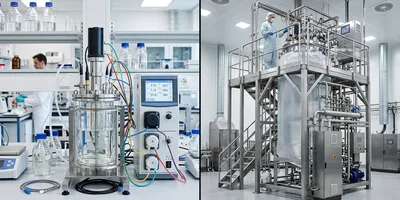

Most bioreactor scale-up failures are not scientific failures. They are engineering failures. The biology that worked at 5 liters, including the cell line, the media, the feeding strategy, and the dissolved oxygen setpoint, is sound. What changes between the bench bioreactor and the 2,000-liter production vessel is the physics of the environment surrounding those cells, and if those changes are not anticipated and engineered for, the process that looked excellent at small scale will behave unexpectedly at large scale.
The parameters that govern cell culture productivity do not scale linearly with volume. Mixing time, oxygen transfer rate, CO2 accumulation, and shear stress distribution all change in ways that can stress cells, alter product quality attributes, and create batch-to-batch variability that raises regulatory questions. Understanding how and why these parameters change and designing scale-up strategies to control them is the technical foundation of predictable scale-up.
This article covers the engineering principles of bioreactor scale-up, from the dimensionless criteria used to design consistent hydrodynamic environments to the role of N-1 perfusion in redefining inoculation density. For the facility design context in which this scale-up engineering operates, see the blueprint for single-use biomanufacturing facilities, and for the broader bioprocessing lifecycle from development through commercial manufacturing, see the ultimate guide to bioprocessing scale-up and Pharma 4.0.
Why the physics of increasing volume matters for scale-ups
When a bioreactor volume increases by a factor of 1,000, from 5 liters to 5,000 liters, the linear dimensions of the vessel increase by only the cube root of 1,000, approximately 10-fold. That geometric relationship governs everything about how the hydrodynamics of the culture change, and most of those changes make the engineering problem harder.
Mixing time, the time required for a pulse addition to be uniformly distributed throughout the vessel, increases with scale under constant volumetric power input. In a 5-liter bioreactor, a base pulse from the pH control loop may homogenize in seconds. In a 2,000-liter vessel, the same pulse may create a transient pH gradient that exposes cells in the vicinity of the addition point to conditions outside the setpoint range for tens of seconds before bulk mixing restores uniformity. Cells exposed to repeated pH excursions can shift glycosylation patterns and charge variant profiles, potentially affecting critical quality attributes of the drug substance.
Dissolved CO2 accumulation is another scale-dependent challenge. In large-scale bioreactors, the hydrostatic pressure at the bottom of a tall vessel increases the partial pressure of dissolved CO2 beyond levels typically encountered at bench scale, and bubbles have a longer residence time in the culture as they rise through a deeper liquid column. Elevated pCO2 can inhibit cell growth and alter glycosylation, and the CO2 stripping strategy that works at 5 liters may be insufficient at 2,000 liters.
Shear stress distribution also changes. Impeller tip speed, which correlates with the shear forces cells experience near the agitator, scales with impeller diameter and rotation speed. Maintaining a constant tip speed at large scale while also maintaining adequate mixing requires impeller design choices that become increasingly complex as vessel volume increases. Research published in Biotechnology Progress in 2025 confirmed that hydrodynamic conditions, including volumetric power input, impeller configuration, and aeration strategy, are among the most significant determinants of production yield during CHO fed-batch scale-up, and that no single criterion adequately captures the full complexity of the scale-up problem.
The engineering criteria of bioreactor scale-up
Scale-up engineering uses dimensionless or volume-normalized criteria to design bioreactor operating conditions that maintain consistent hydrodynamic environments as vessel scale increases. No single criterion perfectly captures the full complexity of scale-up, and in practice, scale-up engineers must choose which criterion to prioritize based on the process requirements and the cell line's specific sensitivities.
Criterion | What it controls | How it is maintained | Key trade-off at large scale |
P/V (volumetric power input) | Mixing energy per unit volume; shear stress distribution | Constant agitation power per unit volume as vessel scale increases | Maintaining P/V at large scale requires higher tip speeds, increasing shear stress risk for sensitive cell lines |
kLa (oxygen transfer coefficient) | Rate of oxygen delivery from gas to culture; critical at high viable cell density | Combined adjustment of agitation rate, sparge gas flow, and sparger design to maintain target kLa | Higher gas flows increase foaming and CO2 stripping; bubble coalescence behavior changes with vessel geometry |
Tip speed | Local shear near impeller blade; primary shear stress experienced by cells | Constant impeller peripheral velocity across scales | Conflicts with P/V criterion at large scale; requires impeller diameter and geometry optimization |
Mixing time (tm) | Time for complete homogenization; determines pH and DO gradient severity | Geometric similarity and optimized impeller configuration | Inherently increases with volume; spatial heterogeneity in large bioreactors can affect critical quality attributes |
vvm (volumetric gas flow rate) | Total gas delivery per unit culture volume; CO2 stripping capacity | Constant gas volume per culture volume per minute | CO2 accumulates with increasing vessel height; bubble behavior changes with hydrostatic pressure at depth |
In practice, maintaining constant P/V is the most widely used primary scale-up criterion for mammalian cell culture because it most directly controls the mixing environment and is most predictive of cell culture performance. kLa is typically verified as a secondary criterion to confirm adequate oxygen delivery at the target agitation and gassing conditions. Tip speed is monitored as a constraint: if the tip speed required to maintain P/V at large scale exceeds the shear sensitivity threshold of the cell line, the impeller design must be revised.
Engineering predictability into the vessel design
The most reliable foundation for predictable scale-up is geometric similarity across the full volume range of a bioreactor platform. When key geometric ratios, including the height-to-diameter ratio of the vessel (H/D), the ratio of impeller diameter to tank diameter (d/D), and the impeller off-bottom clearance, are held constant from 5 liters to 5,000 liters, the dimensionless hydrodynamic behavior of the culture scales predictably. The kLa, mixing time, and shear profiles calculated or measured at bench scale will translate to large scale without requiring empirical re-optimization of every operating parameter.
This principle is why modern single-use bioreactor platforms designed for process development through commercial manufacturing maintain consistent geometric ratios across their volume range. A development bioreactor and a production bioreactor from the same platform family, operating at the same impeller rotation speed in revolutions per minute per liter of culture, will produce similar hydrodynamic environments because the geometry that generates those environments is consistent. Scale-up becomes a matter of calculating the correct operating parameters for the new volume, rather than re-characterizing the process from scratch.
For single-use bioreactors, bag geometry is as important as vessel geometry. The working volume fraction of the bag, the aspect ratio of the inflated bag at maximum fill, and the film architecture, meaning the layered polymer construction of the bag itself, affect both the hydrodynamic environment inside the vessel and the extractables profile of the bag material in contact with the drug substance. Consistent film specifications across a platform's volume range are a prerequisite for assuming that extractables data generated at small scale will be representative of large-scale production conditions.
Predicting commercial behavior at bench scale
Designing a scale-down model that accurately predicts the behavior of a large-scale production bioreactor is one of the most valuable investments a process development team can make. A 2025 study published in the Journal of Biological Engineering documented successful scale-up of CHO cell cultures across three orders of magnitude, from 96-well microtiter plates through stirred-tank bioreactors, by carefully matching oxygen transfer rates and mixing conditions at each scale. The study confirmed that oxygen transfer rate, not simply agitation speed, is the critical parameter for maintaining cell culture performance across scale transitions.
A scale-down model for a 2,000-liter production bioreactor is typically a 10- to 15-liter bioreactor operated to mimic the kLa, mixing time, and pH and DO control dynamics of the large-scale vessel. For processes sensitive to pH heterogeneity, scale-down heterogeneity models deliberately introduce controlled pH or dissolved oxygen gradients that simulate the transient excursions cells experience in a large vessel where base pulses do not distribute instantaneously. These models allow process development scientists to evaluate the impact of large-scale heterogeneity on cell performance and product quality without consuming the time and resources of a full-scale run.
Miniaturized bioreactor systems operating at 15 to 250 milliliters enable high-throughput screening of operating conditions, cell lines, and media formulations with consistent hydrodynamic control in a parallel format. These systems are most valuable in early process development, where large numbers of conditions must be evaluated quickly. Their role in scale-up validation is more limited: they can confirm parameter sensitivity and establish media and feeding optima, but a 15-milliliter vessel cannot faithfully reproduce the CO2 accumulation and mixing time dynamics of a 2,000-liter production bioreactor.
Redefining the inoculation density
Conventional fed-batch bioreactor scale-up begins with inoculation at a viable cell density of approximately 0.5 million cells per milliliter. The culture then spends the first three to five days of the production run in a growth phase, building cell density before peak productivity is reached. That growth phase consumes bioreactor time, media, and production capacity without generating product, and any variability in the health or density of the seed material propagates directly into production bioreactor performance.
N-1 perfusion changes this starting point. By running the final seed train stage in perfusion mode, continuously exchanging spent media with fresh media while retaining cells in the vessel, the N-1 bioreactor can accumulate viable cell density far beyond what is achievable in a standard batch seed. Research from Bristol Myers Squibb published in Bioengineering in 2022 demonstrated that N-1 perfusion with in-line capacitance probe control achieved 4.5-fold higher inoculation VCD than conventional batch N-1 seeding, delivering 2 to 10 million cells per milliliter to the production bioreactor versus the standard 0.5 million cells per milliliter.
The production consequences are significant. A production bioreactor inoculated at 2 to 10 million cells per milliliter bypasses the slow growth phase, reaching peak viable cell density faster, maintaining higher peak VCD for longer, and generating proportionally more product in the same calendar time. A 2024 study published in Biotechnology Progress demonstrated that N-1 perfusion-enabled high inoculation density processes achieved an average 85% titer increase and 132% space-time yield increase compared to conventional low-inoculation-density fed-batch processes across six CHO cell lines expressing three different monoclonal antibodies.
Integrating N-1 perfusion into scale-up design also improves the uniformity of seed material delivered to the production bioreactor, reducing run-to-run variability that can otherwise be attributed to variation in the physiological state of the inoculum rather than to true process variability at production scale.
Process analytical technology in scale-up verification
Process analytical technology (PAT) bridges the bench and commercial scale by providing real-time, in-process measurements of the critical parameters that scale-up engineering is designed to control. The FDA's PAT framework guidance, first published in 2004, explicitly supports the use of real-time quality monitoring rather than end-product testing and encouraged manufacturers to build process understanding through in-line and on-line measurement systems. That regulatory support has enabled the adoption of a generation of PAT tools that are now routinely deployed in both scale-down models and production bioreactors.
In scale-up verification, PAT serves two complementary functions. At small scale, it establishes multivariate models that correlate measured process signals with cell culture performance and product quality outcomes. At large scale, it confirms that the critical process parameters defined during small-scale development are being maintained within their designed ranges, and that the performance the models predict at small scale is actually being achieved at production scale.
Key PAT tools in bioreactor scale-up verification include in-line Raman spectroscopy for real-time glucose, lactate, and product concentration measurement; near-infrared spectroscopy for cell density and metabolite monitoring; and capacitance probes for viable cell density estimation without sampling. The integration of multiple PAT data streams into a unified process monitoring platform enables real-time decisions about feeding, pH adjustment, and harvest timing that would otherwise depend on discrete offline measurements taken hours apart.
For context on how PAT and digital manufacturing tools integrate into the broader Pharma 4.0 framework, see the related coverage in the ultimate guide to bioprocessing scale-up and Pharma 4.0. For the role of purification and downstream scale-up as the continuation of the upstream scale-up engineering challenge, see the coverage of purification breakthroughs promising faster biologic development.
