Sterile fill-finish operations: the final frontier of bioproduction

You've successfully manufactured the drug substance. Now, good luck finding a place to put it in a vial.

Written byTrevor J Henderson

| 8 min read

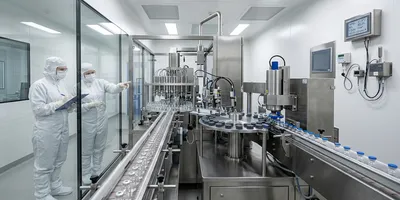

An automated vial-filling line operating in an ISO 5 pharmaceutical cleanroom, with gowned operators monitoring the process through cleanroom glass and glass vials on a conveyor being filled and stoppered.

Aseptic vial filling requires an ISO 5 Grade A unidirectional airflow environment at the point of fill, maintained in real time by environmental monitoring that continuously verifies viable and non-viable particle counts. A single contamination event at this stage can cause rejection of the entire batch regardless of drug substance quality.

Flow (2026)

Listen with Speechify

0:00

8:00

Highlights in this article

Key takeaways
What fill-finish actually involves: the unit operations behind a vial
Why is sterile fill-finish so capacity-constrained?
Lyophilization: when liquid formulation is not enough
How is a fill-finish CDMO partner selected?
Regulatory requirements: Annex 1 and the aseptic processing framework
What primary container format is right for your product?

Sterile fill-finish is the manufacturing step that converts a purified biologic drug substance into a finished drug product ready for patient administration. It encompasses the aseptic transfer of drug substance into primary containers, sterile filtration, lyophilization where required, container closure, and visual inspection. It is also one of the most capacity-constrained steps in the pharmaceutical supply chain, with global demand for aseptic filling capacity substantially exceeding available slots at GMP-qualified facilities.

Key takeaways

Sterile fill-finish is not a single operation but a sequence of interdependent unit operations: sterile filtration of the formulated drug substance, aseptic transfer into the primary container in a Grade A unidirectional airflow environment, container closure, lyophilization for products that require solid-state stability, capping, visual inspection, and labeling. A failure at any step can require rejection of the entire batch regardless of drug substance quality.

FDA approvals of lyophilized injectables have increased by over 300% since the 2000s, driven by the stability advantages of the lyophilized solid form for biologic drug products that cannot be formulated as stable liquids at room or refrigerated temperature. The lyophilizer is an integral part of the aseptic filling line, adding capital cost, cycle time (typically 24 to 96 hours per batch), and process complexity relative to liquid fill operations.

Aseptic processing requirements for sterile biologics are governed by FDA's Aseptic Processing Guidance and EU GMP Annex 1, which was significantly revised in 2022. Annex 1 introduced mandatory contamination control strategy (CCS) documentation and strengthened requirements for restricted access barrier systems (RABS) and isolator technology at the point of fill.

Commercial fill-finish capacity is constrained relative to demand, particularly for lyophilized products, large-volume parenteral biologics, and specialized formats such as prefilled syringes. Programs that secure fill-finish manufacturing slots late in Phase III development face the risk of drug substance waiting without a fill site at approval, or launch delays while fill-finish capacity is qualified.

The primary container format selected during formulation development, whether liquid vial, lyophilized vial, prefilled syringe, or cartridge, determines the fill-finish equipment, cleanroom configuration, validation requirements, and cold chain infrastructure required for commercial manufacturing. Changing container formats after late-stage development requires a substantial regulatory and manufacturing change package.

For the broader manufacturing outsourcing strategy in which fill-finish decisions sit, including the build vs. buy analysis for fill-finish infrastructure, see the related article on navigating GMP facilities and outsourcing. For the specific capital economics of building vs. outsourcing fill-finish, see the related piece on the build vs. buy decision in biomanufacturing.

What fill-finish actually involves: the unit operations behind a vial

The fill-finish process for a biologic injectable begins before the filling line: the drug substance must be formulated, meaning adjusted to the target concentration, pH, and excipient composition of the drug product, and then sterile-filtered through a 0.22-micrometer membrane to achieve bioburden reduction to sterility. A 2024 comprehensive review of filling unit operations for biological drug products confirmed that the filling process itself, including the selection of pump technology, fill tolerance, and line speed, directly impacts final drug product quality through the mechanical forces applied to the formulated drug substance during transfer. The pump system must balance accuracy of fill volume against the shear forces that can induce protein aggregation in shear-sensitive biologic formulations.

Aseptic filling is performed in a Grade A (ISO 5) unidirectional airflow environment in which HEPA-filtered air flows vertically from the fill room ceiling to the work surface, maintaining particle counts below 3,520 particles per cubic meter at 0.5 micrometers. The Grade A zone is surrounded by the Grade B background cleanroom, which is itself surrounded by progressively less stringent Grade C and D areas. Every material, component, and person entering or exiting the aseptic zone follows defined transfer and gowning procedures to maintain environmental control.

After filling and stoppering, vials are capped with an aluminum crimp seal that mechanically retains the rubber stopper. Container closure integrity (CCI) testing, which verifies that the seal between the container and the stopper provides a hermetic barrier against microbial ingress, is performed on samples from each batch. Approved CCI methods include vacuum decay, helium leak testing, and high-voltage leak detection. Visual inspection, either manual or automated using camera-based systems, detects particulate matter, container defects, and fill volume deviations before product is released.

Why is sterile fill-finish so capacity-constrained?

The capital cost of an aseptic filling line includes not only the filling machine but the surrounding cleanroom infrastructure: the Grade B cleanroom with HEPA filtration and air handling, the material airlocks and personnel airlocks with cascading pressure differentials, the washing and depyrogenation tunnel for glass vials, the autoclave for stopper sterilization, and the lyophilizer for products that require freeze-drying. A commercial-scale aseptic filling line with lyophilization capability can cost $100 million to $250 million or more to build and qualify, and commissioning, qualification, and process validation add 18 to 36 months before the first GMP batch can be released.

This capital intensity, combined with the specialized operational expertise required to maintain aseptic conditions at inspection-ready standard, means that GMP-qualified fill-finish capacity is concentrated in a relatively small number of facilities globally. The demand for fill-finish capacity has grown substantially as the biologic pipeline has expanded, creating a structural imbalance between supply and demand that manifests as extended lead times for fill-finish CDMO slots, particularly for specialized formats and lyophilized products.

The COVID-19 pandemic exposed this structural gap when vaccine manufacturing programs required unprecedented fill-finish capacity on compressed timelines. The shortage of qualified aseptic filling capacity was identified as a rate-limiting constraint on vaccine supply in 2020 and 2021, driving significant capital investment in fill-finish capacity expansion by CDMOs and national governments. However, filling capacity expansion has a multi-year lag due to construction and qualification timelines, and the additional capacity coming online in 2024 and 2025 is not uniformly distributed across the biologic formats that the industry needs.

Lyophilization: when liquid formulation is not enough

Lyophilization, or freeze-drying, is the process of removing water from a frozen solution under reduced pressure by sublimation, producing a dry solid cake in the primary container that is reconstituted with sterile water or diluent before administration. It is used when the liquid formulation of a biologic cannot achieve the required shelf life stability at the target storage temperature, typically because protein degradation mechanisms including aggregation, deamidation, oxidation, and hydrolysis proceed faster in the liquid state than the commercial shelf life specification requires. A 2025 review of critical needs and opportunities for advanced manufacturing of lyophilized injectables by CDER, Purdue University, and Pfizer documented that FDA approvals of lyophilized injectables have increased by over 300% since the 2000s, with many first-in-kind medicines, including the first checkpoint inhibitor immunotherapy, initially introduced in lyophilized form while a stable liquid formulation was developed.

The lyophilization cycle has three phases: freezing, in which the solution is cooled below its eutectic temperature to form a crystalline or amorphous solid; primary drying, in which the pressure is reduced below the vapor pressure of ice and heat is supplied to drive sublimation of ice from the frozen cake; and secondary drying, in which the chamber temperature is raised to remove residual bound water from the amorphous or crystalline matrix. Each phase must be optimized for the specific formulation because the thermal transitions, residual moisture target, and drying rate affect the final product quality, reconstitution time, and physical appearance of the lyophilized cake.

The lyophilizer is an integral component of the aseptic filling line, not a standalone piece of equipment that can be added or replaced independently. Control strategy requirements for lyophilization as part of aseptic processing include sterilization-in-place (SIP) validation of the lyophilizer chamber and condenser before each production campaign, because containers enter the lyophilizer partially stoppered and the chamber is not sealed during the initial loading phase, creating a potential contamination risk that must be controlled by the SIP process. A single SIP cycle failure that is not detected before loading can result in loss of the entire batch.

The most significant operational challenge of lyophilization for fill-finish capacity planning is cycle time. A lyophilization cycle for a complex biologic formulation can run 24 to 96 hours from the start of freezing to the end of secondary drying, compared to a few hours for a liquid fill operation. During this time, the lyophilizer is occupied and unavailable for other products. A fill-finish CDMO with limited lyophilizer capacity will schedule campaigns to maximize lyophilizer utilization, which limits the flexibility to accommodate urgent or small-volume batches.

How is a fill-finish CDMO partner selected?

Fill-finish CDMO selection requires evaluating several factors that differ from drug substance CDMO selection. The primary container format compatibility is the first filter: if the program requires prefilled syringes, only CDMOs with qualified prefilled syringe filling lines are candidates, regardless of their general aseptic processing capability. If the program requires lyophilization, the CDMO must have lyophilizers of appropriate scale that can support the cycle parameters required by the formulation development data.

Regulatory track record for aseptic operations is weighted more heavily in fill-finish CDMO selection than in drug substance selection, because sterility assurance is the primary patient safety attribute of a parenteral drug product and regulatory agencies inspect aseptic fill-finish operations with particular scrutiny. A fill-finish CDMO's inspection history across all its product types, not only the specific product class being outsourced, is relevant because aseptic manufacturing failures typically reflect systemic quality system weaknesses rather than product-specific failures.

Capacity availability and scheduling reliability are critical selection factors because fill-finish is typically on the critical path to product launch. A drug substance manufacturing delay can often be managed by running additional batches; a fill-finish slot delay has no equivalent workaround when the fill-finish campaign is the last step before drug product release. Programs should evaluate not only whether a CDMO has capacity available in principle but what their track record is for delivering scheduled campaigns on time and their contingency plans for equipment failures and batch rejections.

The technology transfer considerations specific to fill-finish, including analytical method transfer for container closure integrity testing, process validation for the specific container and closure system, and the regulatory filing requirements for a new fill-finish site, are addressed in the related article on CDMO tech transfer and quality agreements.

Regulatory requirements: Annex 1 and the aseptic processing framework

Aseptic processing for sterile biologics is regulated in the United States under FDA's 2004 Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing, which defines the environmental monitoring, personnel gowning qualification, media fill validation, and process control requirements for aseptic fill-finish. In the European Union, EU GMP Annex 1 governs the manufacture of sterile medicinal products and was substantially revised in 2022, with implementation required by August 2023.

The 2022 revision of Annex 1 introduced two significant new requirements. First, it mandates that manufacturers develop and maintain a contamination control strategy (CCS), a comprehensive documented strategy that identifies all potential contamination risks in the manufacturing process and the controls in place to prevent or detect each risk. Second, it significantly strengthened expectations for the use of restricted access barrier systems (RABS) and isolators at the point of fill, recognizing that these technologies provide better contamination protection than conventional open cleanroom filling. While Annex 1 does not mandate RABS or isolator use for all applications, it requires justification for not using them for new facilities and significant upgrades.

Media fill validation, also called process simulation, is a regulatory requirement under both FDA and Annex 1 that tests the aseptic process by substituting a sterile nutrient growth medium for the drug substance and running the complete filling process through its normal operating range, then incubating the filled units to detect any microbial contamination introduced during filling. Media fills are performed periodically for each filling line and configuration, and a media fill failure, defined as any contaminated unit, is a significant aseptic processing defect that requires investigation, remediation, and revalidation before commercial production can resume.

What primary container format is right for your product?

The primary container format for a parenteral biologic is selected during early drug product development and has downstream consequences for every aspect of fill-finish manufacturing through the product lifecycle. Changing from one container format to another in late development or post-approval is a major pharmaceutical development project that requires stability studies in the new format, process validation on a different filling line, container closure integrity qualification, and a regulatory submission that may require prior approval.

Format	Primary application	Fill-finish complexity	Patient/HCP convenience	Key manufacturing consideration
Liquid vial	Single-dose parenteral biologics with adequate liquid-state stability; clinical supply for dose-ranging studies	Lowest; standard filling line without lyophilizer requirement; shortest cycle time	Requires reconstitution or drawing up by healthcare professional; multi-step preparation at point of care	Formulation must achieve target shelf life in liquid state; protein stability is the primary driver of format selection
Lyophilized vial	Biologics without adequate liquid-state stability at target storage temperature; many first-in-class proteins and mAbs	High; lyophilizer required; 24 to 96-hour cycle per batch adds significant time and capacity consumption	Requires reconstitution; may have longer preparation time than liquid; some biologics require refrigerated storage even lyophilized	Lyophilization cycle development and scale-up is a distinct process development activity; cycle transfer to the fill-finish CDMO requires engineering runs
Prefilled syringe (PFS)	Self-injection biologics; subcutaneous administration; patient convenience and adherence improvement	Higher capital; specialized PFS filling line with nested syringe handling; different container closure system than vials	High; patient can self-inject without reconstitution or preparation step; reduces administration error risk	Container closure integrity qualification is more complex for PFS; different regulatory requirements for sterile syringe vs. vial; limited CDMOs with PFS capability at commercial scale
Cartridge	Pen delivery devices; autoinjectors; high-frequency dosing regimens where multi-dose device is preferred	High; requires cartridge-compatible filling line and device compatibility validation	High when used in a delivery device; multiple doses from single cartridge; device training required	Device combination product regulatory pathway required in addition to biological product filing; delivery device engineering and human factors validation are additional development activities

This article was produced under Drug Discovery News' AI Editorial Guidelines.

Frequently Asked Questions (FAQs)

What is sterile fill-finish and why is it a separate step from drug substance manufacturing?
Sterile fill-finish is the manufacturing step that converts purified drug substance into finished injectable drug product by filling it into primary containers under aseptic conditions. It is separate from drug substance manufacturing because the two steps require fundamentally different facilities, equipment, and expertise: drug substance manufacturing uses bioreactors and chromatography; fill-finish uses sterile cleanrooms, filling machines, lyophilizers, and container closure systems. The aseptic environment required for fill-finish cannot be maintained in the same facility as cell culture and fermentation without complete physical separation.
Why is fill-finish capacity so constrained?
Aseptic filling lines, particularly those with lyophilization capability, cost $100 million to $250 million or more to build and qualify, and require 18 to 36 months from construction start to first GMP batch. This capital intensity concentrates commercial-scale aseptic filling capacity in a relatively small number of qualified facilities. As the biologic pipeline has expanded and specialized formats like prefilled syringes and large-volume biologics have grown in volume, demand for qualified fill-finish slots has grown faster than new capacity has come online.
What is lyophilization and when is it required?
Lyophilization, or freeze-drying, removes water from a frozen biologic formulation by sublimation under reduced pressure, producing a dry solid cake that is reconstituted before administration. It is used when the liquid formulation cannot achieve the target shelf life stability because protein degradation proceeds faster in solution than the product specification allows. FDA approvals of lyophilized injectables have increased by over 300% since the 2000s, reflecting the number of new biologics that require the solid-state stability benefits lyophilization provides.
What is a contamination control strategy (CCS) and why did EU GMP Annex 1 require it?
A contamination control strategy is a comprehensive documented framework that identifies every potential contamination risk in the aseptic manufacturing process and specifies the controls designed to prevent or detect each risk. The 2022 revision of EU GMP Annex 1 made CCS a mandatory requirement for sterile drug product manufacturing, recognizing that aseptic processing contamination events typically reflect systemic quality system gaps rather than isolated incidents. A well-constructed CCS demonstrates to regulators that the manufacturer has systematically identified and controlled contamination risks rather than relying solely on end-product sterility testing.
What is the difference between a RABS and an isolator for aseptic filling?
A restricted access barrier system (RABS) physically separates operators from the Grade A fill zone using a rigid barrier with glove ports for interventions, while maintaining the Grade A environment within the barrier. An isolator goes further by creating a physically sealed enclosure that is sterilized with hydrogen peroxide vapor before each campaign, providing a higher level of assurance that the Grade A zone is not compromised by operator-associated contamination. EU GMP Annex 1 encourages the use of RABS and isolators over open-access Grade A environments and requires justification for not using them in new facilities.
