A Pharma 4.0 facility is not a conventional GMP manufacturing plant with software added on top. It is an integrated system in which the physical layout, the automation architecture, the process analytical technology infrastructure, and the digital operations layer are co-designed from the beginning. Getting that co-design right determines whether the automation investment produces the operational outcomes the business case promised.
Key takeaways |
|
|
|
|
|
For the context of how design center simulation and digital process modeling inform Pharma 4.0 facility design decisions before capital commitment, see the related article on collaborative design centers and bioprocess simulation. For the build vs. buy economics of investing in Pharma 4.0 internal manufacturing infrastructure versus outsourcing to CDMO partners with established automation capabilities, see the build vs. buy decision in biomanufacturing.
What Pharma 4.0 actually means for a biopharmaceutical facility
Industry 4.0, the term coined for the fourth industrial revolution centered on digital connectivity, automation, and data exchange, translates into specific design and operational requirements when applied to pharmaceutical GMP manufacturing. The core principle is continuous situational awareness: every significant parameter in the manufacturing process is measured in real time, the data is integrated into a unified process monitoring and control system, and decisions that were previously made by operators through periodic sampling and manual adjustment are made continuously by automated control systems informed by sensor data.
The application of Industry 4.0 principles to pharmaceutical manufacturing has advanced considerably since the concept was first articulated. Comprehensive analysis of continuous manufacturing of recombinant drugs, including regulatory frameworks and Industry 4.0 integration strategies, confirmed that leading biomanufacturers across North America, Europe, and Asia-Pacific are successfully integrating perfusion upstream processes with connected downstream bioprocesses, enabling fully end-to-end continuous manufacture with demonstrated commercial viability. The regulatory framework through ICH Q13 and the Industry 4.0 integration strategies are now established enough that Pharma 4.0 continuous manufacturing is a commercial reality, not a conceptual future state.

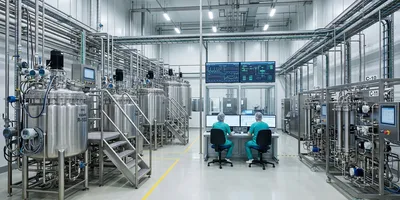

For a biopharmaceutical manufacturing facility, Pharma 4.0 means first that every major unit operation is equipped with sensors that provide continuous real-time data on the process state. A bioreactor in a Pharma 4.0 facility carries not only the standard pH and dissolved oxygen probes of a conventional GMP bioreactor, but potentially in-line biomass sensors, Raman spectroscopy for real-time metabolite monitoring, inline turbidity and particle size, and glucose and lactate sensors that provide continuous metabolic state data. This sensor density is not inherent in the bioreactor hardware; it is designed into the facility as part of the PAT infrastructure.
How is a Pharma 4.0 facility designed differently from a conventional GMP plant?
The most consequential design differences between a Pharma 4.0 facility and a conventional GMP manufacturing plant are not in the biological process equipment but in the automation infrastructure that supports it. A conventional GMP bioreactor facility is designed to execute a documented batch manufacturing process with human operators making process decisions at defined sampling intervals. A Pharma 4.0 facility is designed to execute the same biological process with automated control systems making equivalent decisions continuously based on real-time sensor data, with human operators supervising the automated system rather than making direct process interventions.
This design difference flows through the facility from the instrument installation to the cable routing, the control system architecture, the server room sizing and location, and the cleanroom design for sensor maintenance access. A Pharma 4.0 facility requires more penetrations through cleanroom walls for sensor cables and signal lines; more process connections for in-line sensors that are installed directly in the process fluid path; larger and more capable distributed control systems (DCS) that handle the volume and variety of real-time sensor data; and a data infrastructure that captures, stores, and makes searchable the continuous process data stream from every sensor in the facility.
Automation layer | ISA-95 level | What it contains in a Pharma 4.0 facility | Key difference from conventional GMP |
Field (Level 0-1) | Level 0: Process Level 1: Control | In-line and at-line PAT sensors; actuators; programmable logic controllers (PLCs) for equipment-level control; bioreactor process controllers; chromatography system controllers | Substantially higher sensor density; PAT instruments (Raman, NIR, biomass probes) alongside conventional probes; sensor data flows continuously to Level 2 rather than being sampled periodically |
Supervisory (Level 2) | Level 2: Supervisory control (SCADA/DCS) | Distributed control system or SCADA platform that aggregates real-time data from all Level 1 devices; closed-loop control of process parameters; alarm management; real-time process trending and visualization | DCS must handle continuous high-frequency data streams from PAT sensors alongside conventional process data; closed-loop control algorithms are more complex and require more extensive validation than manual-adjustment conventional systems |
Operations (Level 3) | Level 3: Manufacturing execution (MES) | Manufacturing execution system managing batch records, process recipe execution, equipment scheduling, material tracking, and GMP documentation; real-time batch record population from Level 2 data | MES is integrated with DCS/SCADA for automated batch record completion from real-time sensor data, reducing manual data entry and human transcription error; electronic batch records are population-complete at batch end without manual completion |
Enterprise (Level 4) | Level 4: Business planning (ERP) | ERP integration for production scheduling, raw material procurement, quality management, and regulatory documentation; process data accessible for batch release decisions and trend analysis | Real-time manufacturing data feeds quality release workflows and regulatory batch record generation; trend analysis across multiple batches informs CPV reporting; data accessible for regulatory inspections without manual compilation |
Process analytical technology: the sensing layer that makes automation possible
Process analytical technology was formally defined in the FDA's 2004 PAT Guidance as a system for designing, analyzing, and controlling manufacturing through timely measurements of critical quality and performance attributes of raw and in-process materials and processes, with the goal of ensuring final product quality. Smart factory research on integrating QbD with PAT in pharmaceutical manufacturing confirms that this integration has substantially improved quality control and productivity across pharmaceutical workflows, and that the smart factory model of real-time monitoring, predictive maintenance, and adaptive control depends fundamentally on the PAT layer for its data input.
Implementing PAT in a Pharma 4.0 facility requires more than installing sensors on the equipment. Each PAT measurement must be validated for its specific application: the measurement must be shown to be accurate, precise, linear, and robust under the range of process conditions it will encounter in GMP manufacturing. The PAT sensor calibration strategy must be designed to maintain measurement accuracy through the duration of each production campaign, and the calibration procedure must be executed in a GMP-compatible way that does not require stopping the process. The data integrity requirements for PAT data, including data acquisition, storage, audit trail, and backup procedures, must meet 21 CFR Part 11 requirements for electronic records in GMP environments.
PAT data, when it meets these quality requirements, becomes the foundation for real-time process decisions. Research on digital twins in pharmaceutical manufacturing confirms that PAT-integrated continuous manufacturing digital twins have achieved API consistency improvements of 99.95% by enabling the closed-loop control of process parameters that directly affect product quality. The digital twin layer that converts PAT data into process understanding and control decisions is addressed in the related feature on digital twins and AI in biopharma manufacturing. The PAT sensing infrastructure that feeds those digital systems is the physical facility design challenge covered here.
What does commissioning look like for a facility built for automation from the start?
Commissioning and qualification of a Pharma 4.0 facility is substantially more complex than for a conventional GMP plant because the automation systems that are being commissioned are deeply integrated across multiple facility systems. A PAT sensor that feeds a closed-loop control algorithm that populates an electronic batch record is not three independent systems that can be commissioned sequentially; it is one integrated system that must be tested as a whole. The commissioning strategy for a Pharma 4.0 facility must account for this integration from the start.
Digital commissioning, sometimes called virtual factory acceptance testing (FAT) or virtual commissioning, uses a virtual model of the facility automation systems to test process recipe execution, equipment interlock logic, alarm management, and MES integration before the physical equipment is installed. Automation engineers test the control system configuration against the virtual model, identifying integration issues between the DCS, the PAT instruments, the MES, and the safety systems before any physical wiring is connected. Issues discovered in virtual commissioning are resolved in the software configuration, which is faster and cheaper than resolving them during physical commissioning with physical equipment installed.
Physical commissioning of a Pharma 4.0 facility follows the ISPE GAMP 5 framework for GMP-regulated computerized systems, which applies risk-based qualification principles to the automation systems based on their impact on product quality. The distributed control system, the SCADA platform, and the MES are each qualified according to their GxP impact category, with installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) activities designed specifically for the automated systems rather than adapted from the conventional equipment qualification approach. Automated system performance qualification demonstrates that the integrated automation system executes the manufacturing process recipe correctly under the full range of operating conditions, including both normal process execution and specified alarm and deviation scenarios.
The process simulation tools used during facility design and virtual commissioning, including CFD modeling of bioreactor hydrodynamics and mechanistic process models that predict cell culture performance, are described in the related article on collaborative design centers and bioprocess simulation. The digital twin systems that emerge from these simulation tools and are implemented in the commissioned facility for ongoing process monitoring and control are addressed in the related feature on digital twins and AI in biopharma manufacturing.
Continuous manufacturing and the ICH Q13 pathway
Continuous manufacturing is the operational model most fully enabled by Pharma 4.0 facility design. In a continuous manufacturing process, drug substance or drug product is produced by a series of unit operations running simultaneously and connected in series, with material flowing continuously from input to output rather than being processed in discrete batches with hold steps between operations. The ICH Q13 guideline, which establishes the regulatory framework for continuous manufacturing, has been implemented by the FDA, EMA, and PMDA, making continuous manufacturing a supported regulatory pathway across the major pharmaceutical markets.
ICH Q13 introduces the concept of continuous process verification (CPV) as the validation approach for continuous manufacturing processes. In conventional batch manufacturing, process performance qualification (PPQ) validates the process by demonstrating that a defined number of commercial-scale batches consistently produce product meeting specification. In continuous manufacturing, the boundary between development and commercial manufacturing is defined by an operating time range and production quantity rather than a batch count, and CPV uses real-time process monitoring and PAT data to demonstrate ongoing process control rather than a fixed number of qualification batches.
The facility design requirements for continuous manufacturing are more demanding than for batch manufacturing because every unit operation in the process must be capable of sustained operation and controlled handoff to the next unit operation. Bioreactor perfusion must be matched to the capacity of the connected continuous downstream capture step; the capture step must be matched to the polishing train. Buffer and media supply must be continuous rather than batch-prepared. Cleaning and sterilization cycles for individual unit operations must be integrated into the continuous campaign without stopping product flow through the connected system.
What operational outcomes does a Pharma 4.0 facility actually deliver?
The operational outcomes from a Pharma 4.0 facility, when the automation and digital infrastructure is properly designed and implemented, fall into four categories: cycle time reduction, quality consistency improvement, human error reduction, and analytical release acceleration. Research confirming that smart factories integrating data analytics, advanced automation, and AI enhance production efficiency and ensure quality stability across the manufacturing cycle is consistent with the specific operational improvements reported by early Pharma 4.0 implementers, though the magnitude of improvement is facility-specific and depends heavily on the quality of the automation design and the process it is applied to.
The most prominent early commercial example of Pharma 4.0 outcomes in biopharmaceutical manufacturing is GSK's digital twin implementation for adjuvant production, developed in collaboration with Atos and Siemens beginning in 2019. This implementation combined computational fluid dynamics modeling with machine learning to create a state estimator model that maps process parameters to product quality attributes in real time, operating both as an offline process simulator and an online process monitor and control system during GMP manufacturing. The demonstrated capability to predict product quality attributes from real-time process data is the operational foundation for real-time release testing.
Real-time release testing (RTRT) is the regulatory mechanism through which PAT-derived quality data replaces end-of-batch analytical testing for specific quality attributes. Instead of testing the finished batch against its specification and waiting for results before releasing the batch for distribution, RTRT uses continuous PAT measurements taken during manufacturing to demonstrate that the quality attribute met specification throughout the production run. RTRT requires regulatory submission and approval for each attribute it covers, but it can substantially reduce the batch release timeline for products where the PAT measurement is more rapid and more informative than the conventional analytical test it replaces.
The build vs. buy question for Pharma 4.0 capability is one of the most consequential capital decisions a growing biopharmaceutical company faces. A Pharma 4.0 facility requires substantially more upfront engineering investment than a conventional GMP plant: the PAT infrastructure, the DCS and MES integration, the data management systems, and the digital commissioning effort each add cost and timeline that a conventional plant does not have. The return on this investment is higher operational efficiency, lower batch failure rates, and faster batch release, but these returns accrue over the operating life of the facility, not during construction.
